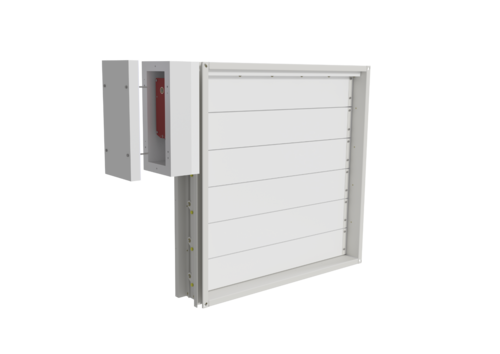

Multi blade smoke control damper Type RKE
- Smoke control damper for single compartment applications
- Suitable for installation onto the outside of smoke control ducts in accordance with EN1366-9
- Classification in accordance with EN 13501-4
- Fire tested in accordance with EN 1366-10
- CE certification in accordance with EN 12101-8
Smoke control dampers are intended for the removal of smoke and the provision of supply air in smoke extraction systems.
Strulik Type RKE single compartment smoke control dampers may only be used to discharge smoke from the area/fire section (single compartment) to be protected - therefore there are no requirements for fire resistance and maintanance of compartmentation
The smoke dampers are equipped with electric actuators with 24 V AC/DC or 230 V AC supply voltage, which are protected in a heat insulating housing in order to ensure proper opening and closing of the smoke damper under elevated temperature conditions.
Variants:
- Automatic control via electric drive 230V
- Automatic control via electric drive 24V
