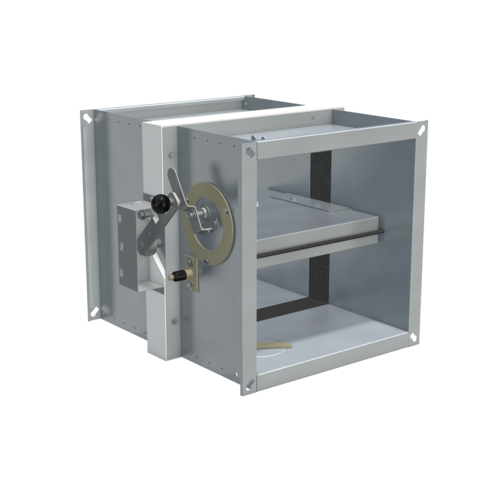

Fire damper completely without stop bars Type BKS-2

  • Fire damper with a steel blade without blade stops
  • Especially suitable for applications with high acoustic and ventilation requirements
  • Classification in accordance with EN 13501-3 up to EI 120 S depending on the installation application
  • Fire tested in accordance with EN 1366-2
  • CE certification in accordance with EN 15650

Dimesnsions

Width 200 - 1500 mm, height 200 - 800 mm


Variants

  • Thermal release via fusible link
  • Thermoelectric release with 230V electric actuator
  • Thermoelectric release with 24V electric actuator



Installation Situations

Installation in masonry, aerated concrete and concrete walls and in aerated concrete and concrete ceilings
Installation in partition walls

Documents
