Cubiform damper for installation in fire-resistant suspended ceilings Type BW-K30U

  • Triggering: At 72° C with fusible link
  • Standard lengths: NW 100, 125, 160, 200
  • Aerodynamically designed for low noise, high air flow rates. Airflow can be in either direction
  • Fire resistance class K30: Fire from above and below

Fire protected swirl diffusers for use in independently tested F30 suspended ceilings with integrated fire damper.

Dimensions:

DN100, DN125, DN160 and DN200

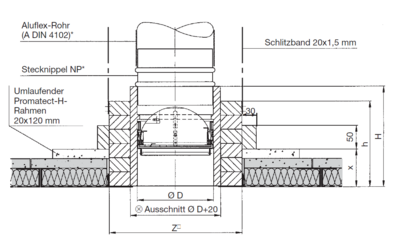

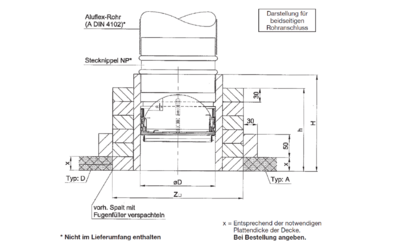

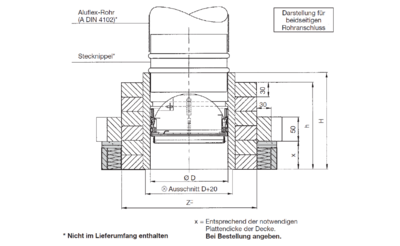

Installation Situations

Installation in fire-resistant false ceilings F30
Installation in fire-resistant Dipling metal false ceilings F30
Installation in fire-resistant false ceilings F30 as metal false ceilings according to test certificates executed
