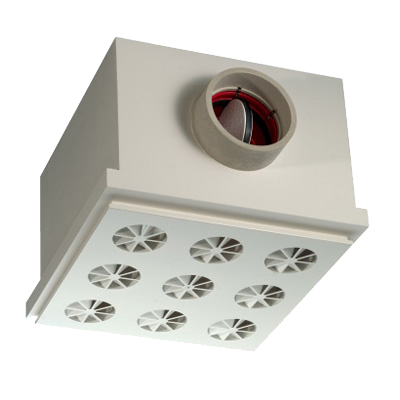

Air plenum box for installation in fire-resistant suspended ceilings Type LB-K90(K30)U

  • Triggering: At 72° C with fusible link and spring retrun actuator
  • Standard lengths: NW 100, 125, 160, 200
  • Connection type: one or two connection spigots
  • Size: Variable size adapted to the different air outlets from our air diffuser range
  • Fire resistance class K90U/K30U: Fire from above and below

Fire resisting air plenum boxes for use in independently tested F30 or F90 suspended ceilings with integrated fire dampers.

Dimensions:

DN100, DN125, DN160 and DN200

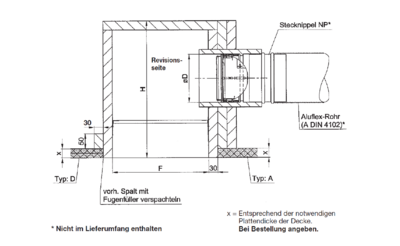

Installation Situations

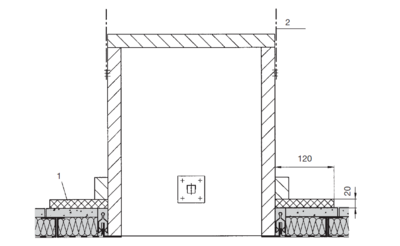

Installation in fire-resistant false ceilings F30
Installation in fire-resistant Dipling metal false ceilings F30
