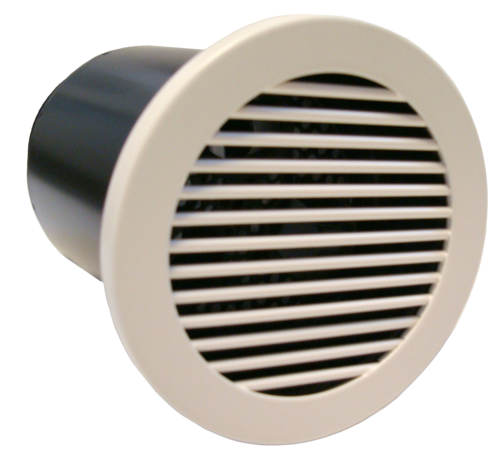

Wall supply air diffuser Type WA-WG

  • Very low sound power level of only 15 - 29 dB(A) for diffuser size 100
  • Variable penetration depth, therfore adjustment of the throw according to the room dimensions
  • Design-focused front grill

Wall air diffuser for draught-free and silent supply of air into living spaces. Suitable for supply air volumes of 30 - 120 m3/h. Adjustable penetration depth of 1,6 - 7,7 m depending on product size and nozzle position.


Function

  • Diffuser front part consisting of a displacement section and integrated adjustable rubber nozzles
  • Through alteration of the nozzle position the throw can be adjusted and redirected by 15°

Design

  • Sheet steel, powder-coated
  • Standard colour is RAL 9010 matt
  • Special colours or stainless steel on request
