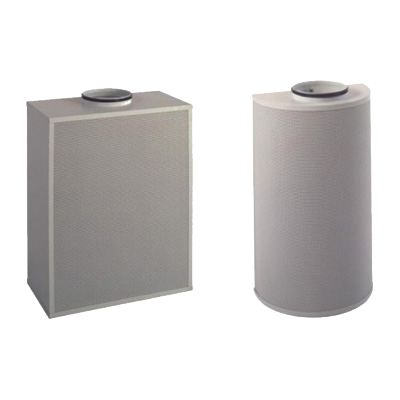

Standard displacement diffuser Type SQ

  • Up to 7 different manufactured sizes are available for 5 basic types (rectangular, half-round, quarter round, round and quadratic) for wall mounting

In the comfort and industrial sector. Displacement diffusors of type SQ are with regard to design and manufactured sizes standardised supply air outlets for low induction in ground level in ventilation systems and air conditions. Particularly there, where no low temperature gradient over the room height is required and where air pollutions can be eliminated undiluted and efficiently


Function

  • The entering supply air from the top or bottom into the outlet will be constantly distributed over the air outlet height and width by the interior air distribution elements that a constant air speed at the air outlet face is given

Design

  • Sheet steel, powder-coated RAL 9010 matt
  • The air outlet face has a round perforation of a 3 mm diameter
